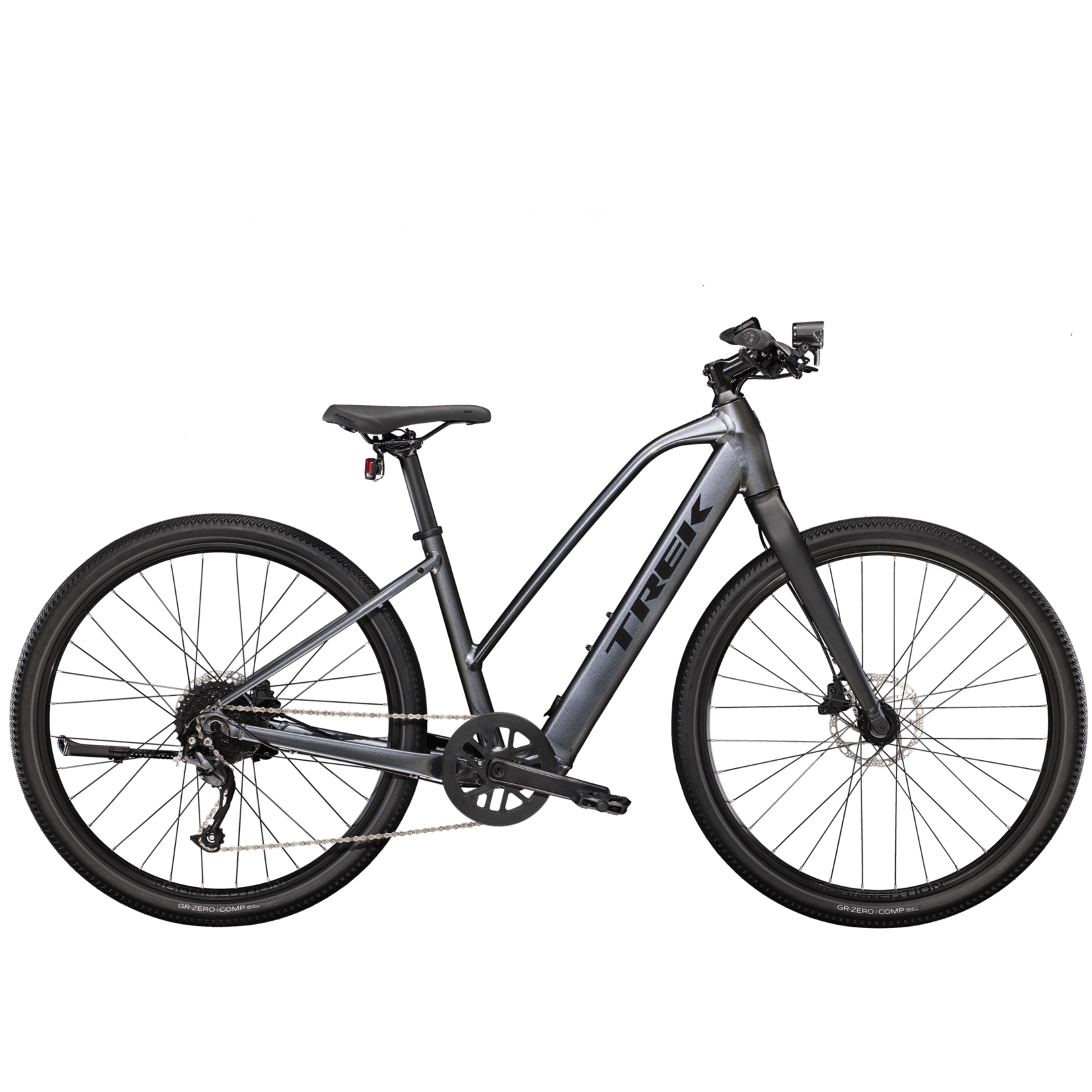

The Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on the road and light trails. It has an intuitive and natural feeling pedal-assist system that makes exploring your surroundings fun and stress free.
The Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on the road and light trails. It has an intuitive and natural feeling pedal-assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tyres give you confidence on varied terrain.
You want a lightweight, simple-to-use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures.
A lightweight aluminium frame with a stagger design that's easier to hop on and off, Trek's proprietary pedal-assist system with a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 55 kilometres per charge. Plus, stiff 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery and a kickstand.
All the capability and confidence of Dual Sport, with an electric boost that helps you do more! The Dual Sport+ lets you haul groceries uphill with ease and adventure further than you thought possible.
Specs
*Please note – spec applies to all sizes unless listed separately
Frame | Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing |
---|---|
Fork | DS+ alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer |
Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
---|---|
Skewer front | 135x5 mm bolt-on |
Hub rear | Hyena hub drive motor, 40 Nm, 250 W |
Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
Spokes | 14 g stainless steel, black |
Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
Max tyre size | 27.5x2.00" with or without mudguards |
Shifter | Shimano Altus M2010, 9-speed |
---|---|
Rear derailleur | Shimano Altus M2000, long cage |
*Crank | Size: S, M ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length |
Size: L ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length |
|
Bottom bracket | Torque sensor, threaded, 122.5 mm spindle |
Cassette | Shimano HG200, 11-36, 9-speed |
Chain | KMC X9 |
Pedal | Bontrager City pedals |
Max. chainring size | 1x: 42T |
Saddle | Bontrager Sport |
---|---|
*Seatpost | Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
*Handlebar | Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
Size: L Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
Grips | Bontrager XR Endurance Comp, lock-on |
*Stem | Size: S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
Brake | Shimano hydraulic disc, MT200 lever, UR300 calliper |
Brake rotor | Shimano RT26, 6-bolt,160 mm |
Battery | 250 Wh, integrated in down tube, Range Extender compatible |
---|---|
Charger | 2A, 42V output, 100V–240V AC input |
*Light | Size: S, M, L Herrmans MR4, 120-lumen LED |
Size: S, M, L Spanninga Solo |
|
Computer | LED display |
Kickstand | Alloy, rear mount |
Weight | M - 17.28 kg / 38.1 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
