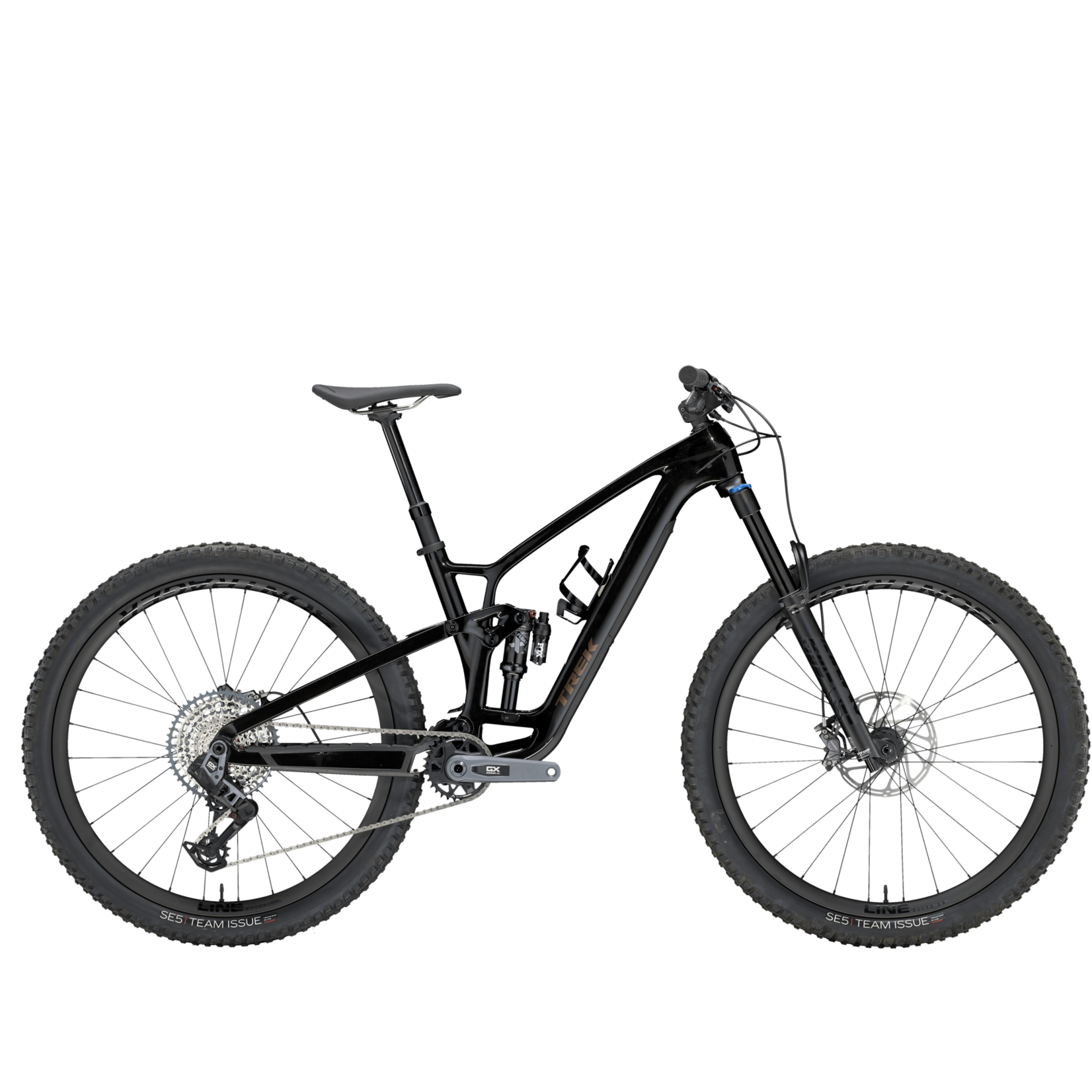

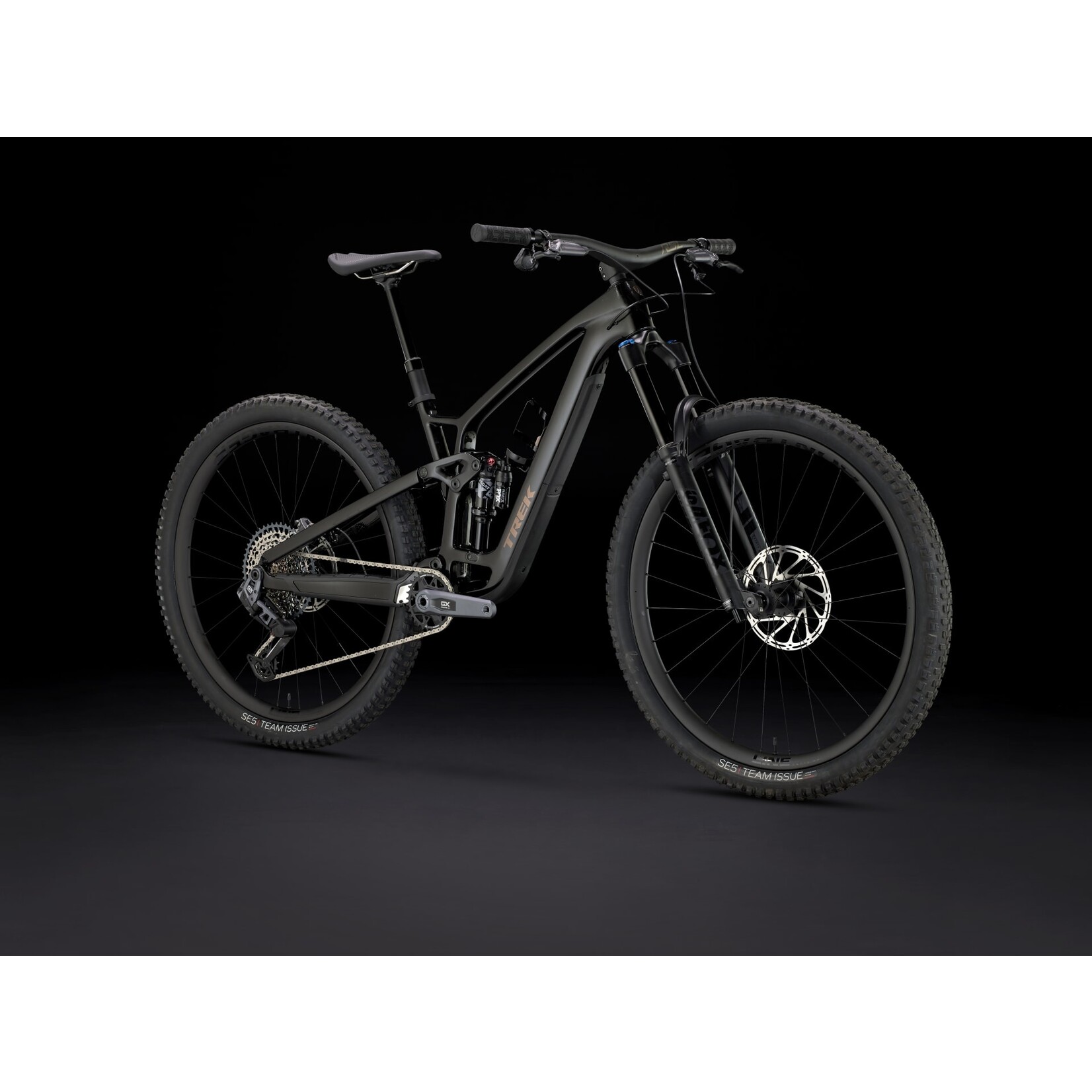

2024 TREK Fuel EX 9.8 GX AXS T-Type Gen 6

You want a full suspension ride that can handle anything you throw its way. You want the vibration-damping benefits of a carbon frame and wheels and rock-gobbling premium suspension, and appreciate when you can keep your set-up clean and minimalist with wireless 12-speed shifting.

A light-and-stiff carbon frame with a full FOX Performance suspension package that turns chunky rock gardens into smooth sailing. Carbon wheels that keep weight down while offering stiff and reliable tracking. Plus, the wireless shifting of SRAM's 12-speed GX AXS transmission, and tubeless hoops and tyres so you can spend less time fixing flats. Finally, you'll find adjustable geometry and in-frame storage for keeping your set-up dialled just for you.

The Fuel EX 9.8 is the evolution of years of trail riding, with longer front geometry for taking on steep descents, and a steeper seat tube for hammering back up to do it again. Its carbon frame keeps things light, and SRAM GX AXS shifting takes things up a notch for those who want the latest tech.

The Fuel EX Gen 6 gives you 140/150 mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
It comes equipped with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line when things get hairy
You get the latest technology in SRAM's GX AXS 12-speed transmission for precision shifting – even under load, plus a FOX Performance suspension package
With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame	OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork	Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Shock	Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Max compatible fork travel	160 mm, XS/S: 150 mm

Wheels

Wheel front	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29"
Hub front	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Bontrager Line Elite 30, Tubeless-Ready
Tyre	Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

E-system

Battery	SRAM eTap battery pack (with charger)

Drivetrain

Shifter	SRAM AXS POD
Rear derailleur	SRAM GX Eagle AXS, T-Type
Crank	SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain	SRAM GX Eagle, T-Type, 12-speed
Max. chainring size	1x: 34T round, 32T oval, min 28T

Components

*Saddle	Size: M , ML , L , XL Bontrager Arvada, austenite rails, 138 mm width
*Saddle	Size: M , ML , L , XL Verse Short Comp, steel rails, 145 mm width
*Seatpost	Size: M , ML Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
	Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
	Size: ML , L , XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
	Size: L Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
	Size: XL Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Handlebar/stem (integrated)	Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Head set	Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake	SRAM CODE Bronze 4-piston hydraulic disc
*Brake rotor	Size: M , ML , L , XL SRAM CentreLine, 6-bolt, round-edge, 180 mm
*Brake rotor	Size: M , ML , L , XL SRAM CentreLine, 6-bolt, round-edge, 200 mm
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

Bag	Bontrager BITS Internal Frame Storage Bag

Weight

Weight	M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
