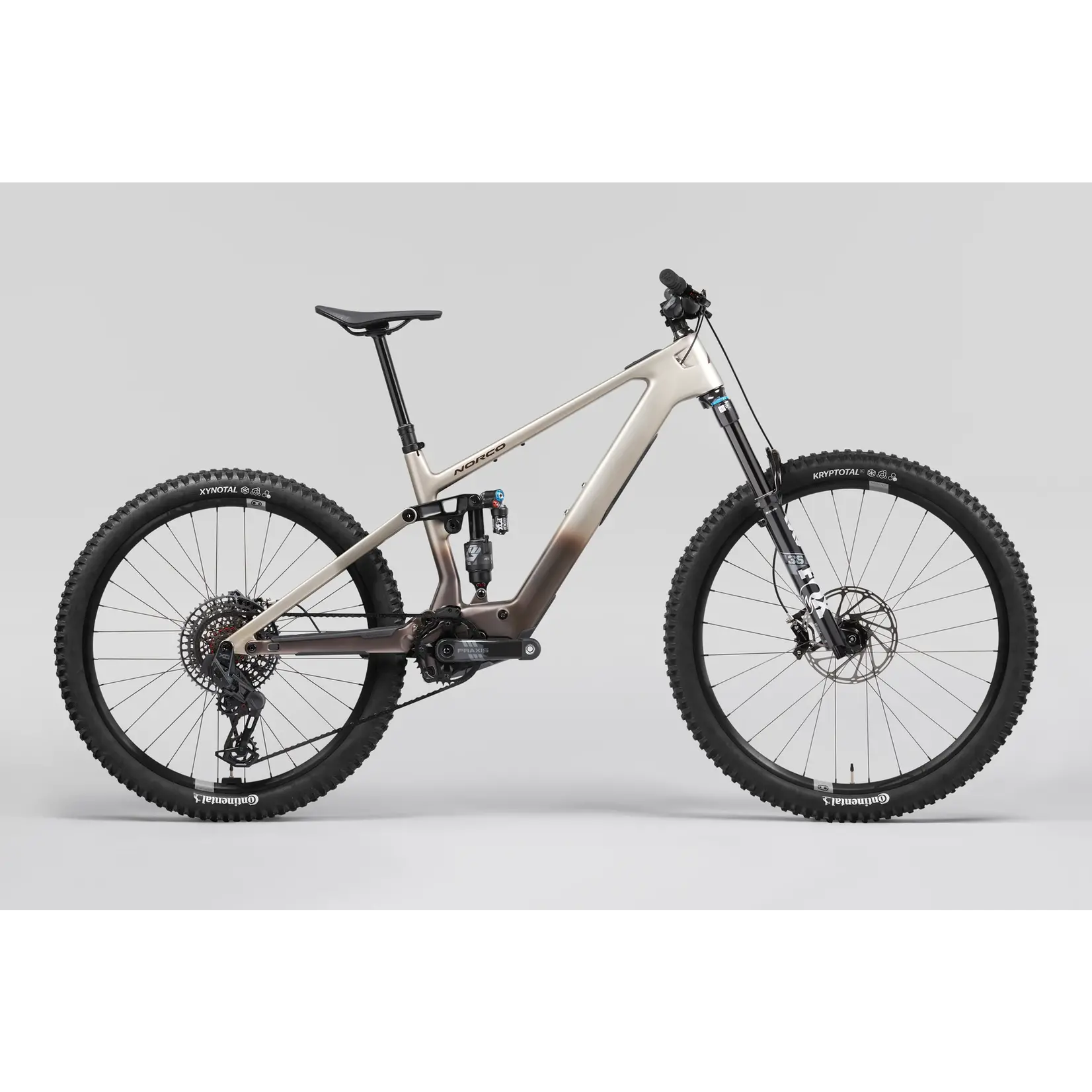

24 FLUID VLT C1 140

Introducing the new Fluid VLT; premium ride performance in a lightweight package for an e‑MTB that looks, feels and rides exactly like you want it to.

The latest in integrated e‑MTB technology from Bosch

The new world order to change perception of what an e‑MTB should feel like is here. Rivaling full power systems and wrapped in a lightweight package, the Fluid VLT with Bosch Performance Line SX motor is made for seasoned e‑MTB riders, those seeking innovation, and e‑curious pedal-purists taking their first foray into powered up riding.

The natural, agile ride feel you’re looking for in your next e‑MTB

Reactive, playful ride performance with Ride Aligned™ Trail geometry featuring size-specific Rear-Centres & Seat Tube Angles, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.

Built to Accommodate Rider Preference

The Fluid VLT is a 29"/27.5" mixed wheel build. The Fluid VLT C1 130 comes with 140mm/130mm of travel and the 140 comes with three levels of spec with 150mm/140mm of travel. Covering multiple options to suit every rider.

Bosch Performance Line SX with 400Wh battery

The Bosch Performance Line SX wireless ecosystem sheds significant e‑MTB weight in an intuitive package. Complete with a Bosch CT 400Wh battery and an almost silent motor engineered for lightweight capability and full speed fun.

There’s an App for that

The Bosch eBike Flow App connects to the drive unit, battery, display, and control unit to help you determine your optimum level of assist and range. It also turns your phone into a digital key that locks and unlocks your Fluid VLT. Updates are conveniently installed via Bluetooth keeping your bike up to date with new functions.

Reactive, playful, ride performance

Optimized Ride Aligned™ suspension design & setup with Trail optimized kinematics, reactive pedal-efficiency and the simplicity of precision-tuned Horst Link suspension.

Fluid VLT C1 140

Get more rides in and make the most of every minute of the lightweight Fluid VLT C1 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.

Light weight capability and full speed fun

With 140mm of custom-tuned, precision-engineered suspension travel and 150mm fork travel, the Fluid VLT C1 140 delivers an improved ride feel with the latest in integrated e-mtb technology from Bosch.

Details

The latest in integrated e‑MTB technology from Bosch.
Built to Accommodate Rider Preference.
Bosch Performance Line SX with 400Wh battery.
Control your assist and range with the Bosch eBike Flow App
Reactive, playful, ride performance.
Uncompromising components engineered and spec'd for light weight capability.
Set up like a Pro – features the Ride Aligned™ Setup Guide.
No Other Way Limited Lifetime Warranty.

Specs

01. FRAME	Carbon Frame w/Carbon SS and CS
02. FORK	Fox 36 Performance Elite 150mm, 44 Offset
03. REAR SHOCK	Fox Float X Performance Elite 140mm
04. HEADSET	FSA No. 57 ZS, Carbon Top Cover
05. HEADSET SPACER	Carbon, 2x10mm, 1x5mm
06. GRIPS	WTB Wavelength Grip
07. HANDLE BAR	One Up Carbon 800mm x 20mm Rise
08. STEM	Norco 6061 Alloy 40mm/35mm
09. SEAT POST	TranzX YSI08FL RAD+ Travel Adjust Post
10. SEAT POST CLAMP	Norco Alloy Nutted Clamp
11. SADDLE	Fizik Ridon
12. FRONT BRAKE	SRAM Level Silver Stealth 4-Piston
13. FRONT BRAKE ROTOR	SRAM Centreline Rotor 200mm, 6-Bolt
14. REAR BRAKE	SRAM Level Silver Stealth 4-Piston
15. REAR BRAKE ROTOR	SRAM Centreline Rotor 180mm, 6-Bolt
16. BRAKE LEVERS	SRAM Level Silver Stealth 4-Piston
17. SHIFTER REAR	SRAM Pod Ultimate Controller
18. REAR DERAILLEUR	SRAM X0 Eagle AXS T-Type
19. CASSETTE	SRAM 1295 T-Type 10/52
20. CHAIN	SRAM XO Eagle T-Type 12spd
21. CRANKSET	Praxis Carbon Bosch w/Spider 165mm
22. BOTTOM BRACKET	Bosch PLSX
23. FRONT HUB	Crank Bros. Synthesis Alloy 110 x 15
24. FRONT HUB SKEWER	Fox 110x15
25. REAR HUB	Crank Bros. Synthesis Alloy 148 x 12
26. REAR HUB SKEWER	148mm x 12mm TA
27. SPOKES/NIPPLES	Crank Brothers Synthesis
28. RIMS	Crank Brothers Synthesis Alloy Enduro
29. FRONT TIRE	Continental Kryptotal 29" x 2.4 Trail
30. REAR TIRE	Continental Xynotal 29" x 2.4 Trail
31. FEATURES 1	Fluid VLT Full Carbon Frame
32. FEATURES 2	Bosch PL SX Motor and CT400 Battery
33. FEATURES 3	Fox Float 36 Performance Elite 150mm Fork
34. FEATURES 4	Fox Float X2 Performance Elite 140mm Shock
35. FEATURES 5	SRAM XO AXS T-Type Drivetrain

Please note - specifications subject to change without prior notice.
