Breaking Boundaries
A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Where it thrives
Challenging trails, Up and down hills, Out in the elements
What it's built for
Handling, Traction, Efficiency, Durability
Highlights
- Proportional Response Tuned SmartForm Alloy frame / RockShox Yari RC fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/Deore 12-speed drivetrain
From the high mountains to your local loops, this e-MTB will take you to a whole new level. Agile and quick on the climbs, stable and composed on even the nastiest descents, it makes the easy trails fun, and the hard trails electrifying. It’s the kind of machine that makes you lust for the next ride.
Built for You
Power and range are just the beginning. What makes the Moterra really shine is how it handles. With our Proportional Response size-specific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was built just for you. Because it was.
FRAMESET
Frame
Moterra, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts
Fork
RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset
Headset
Integrated Sealed Bearing, 1-1/8" - 1.5
Rear Shock
RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound
E-SYSTEM

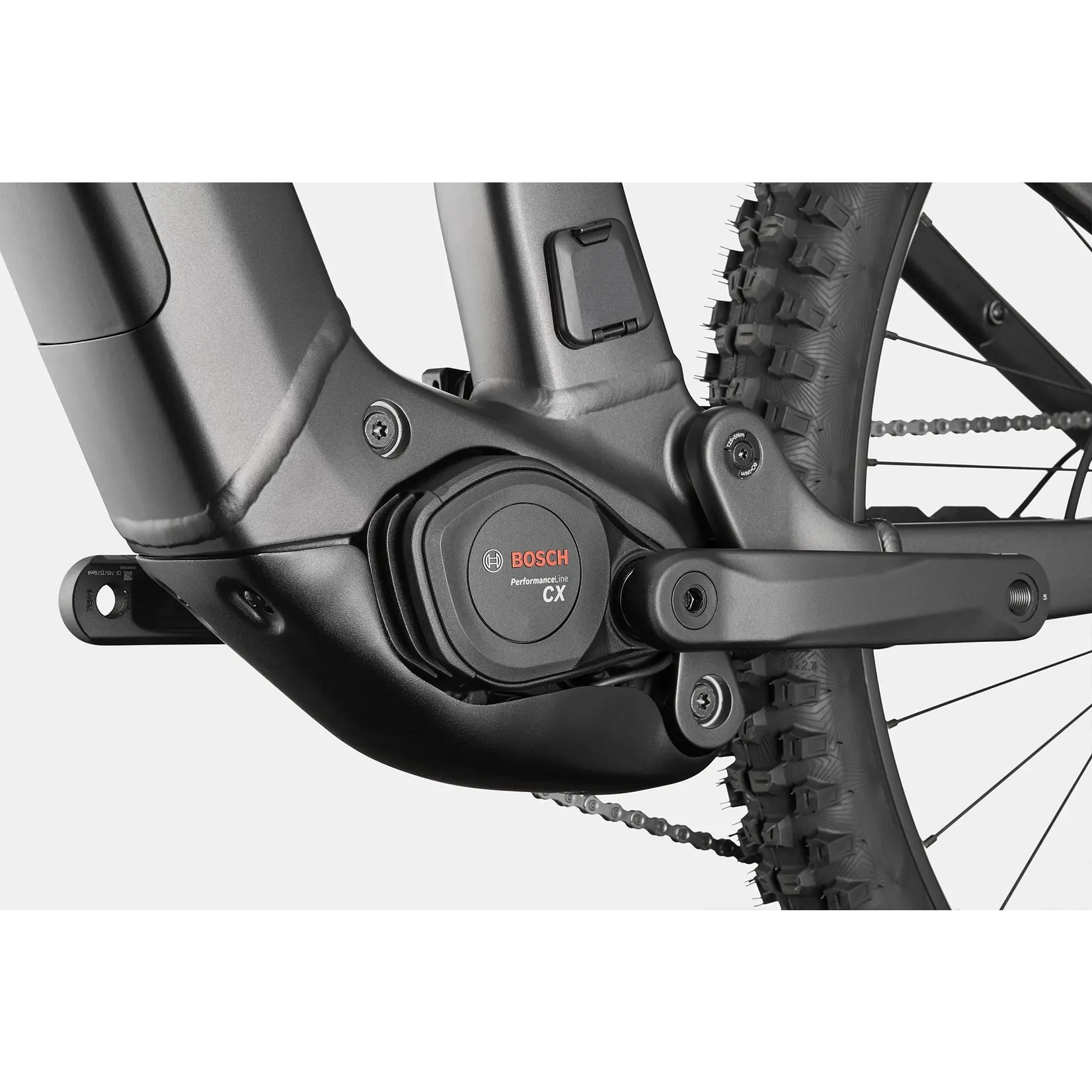

Drive Unit
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Display

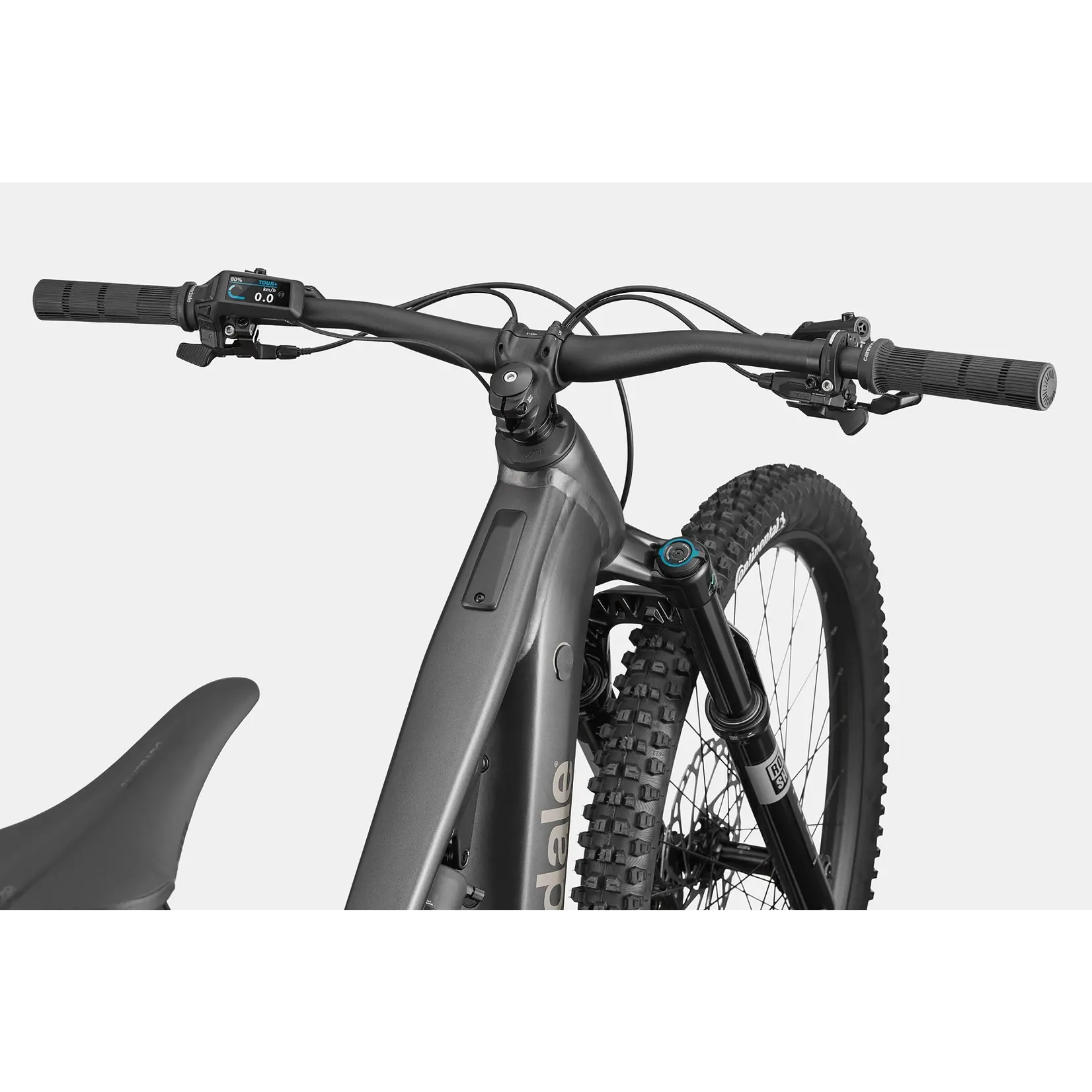

Bosch Kiox 300 w/ LED remote
DRIVETRAIN

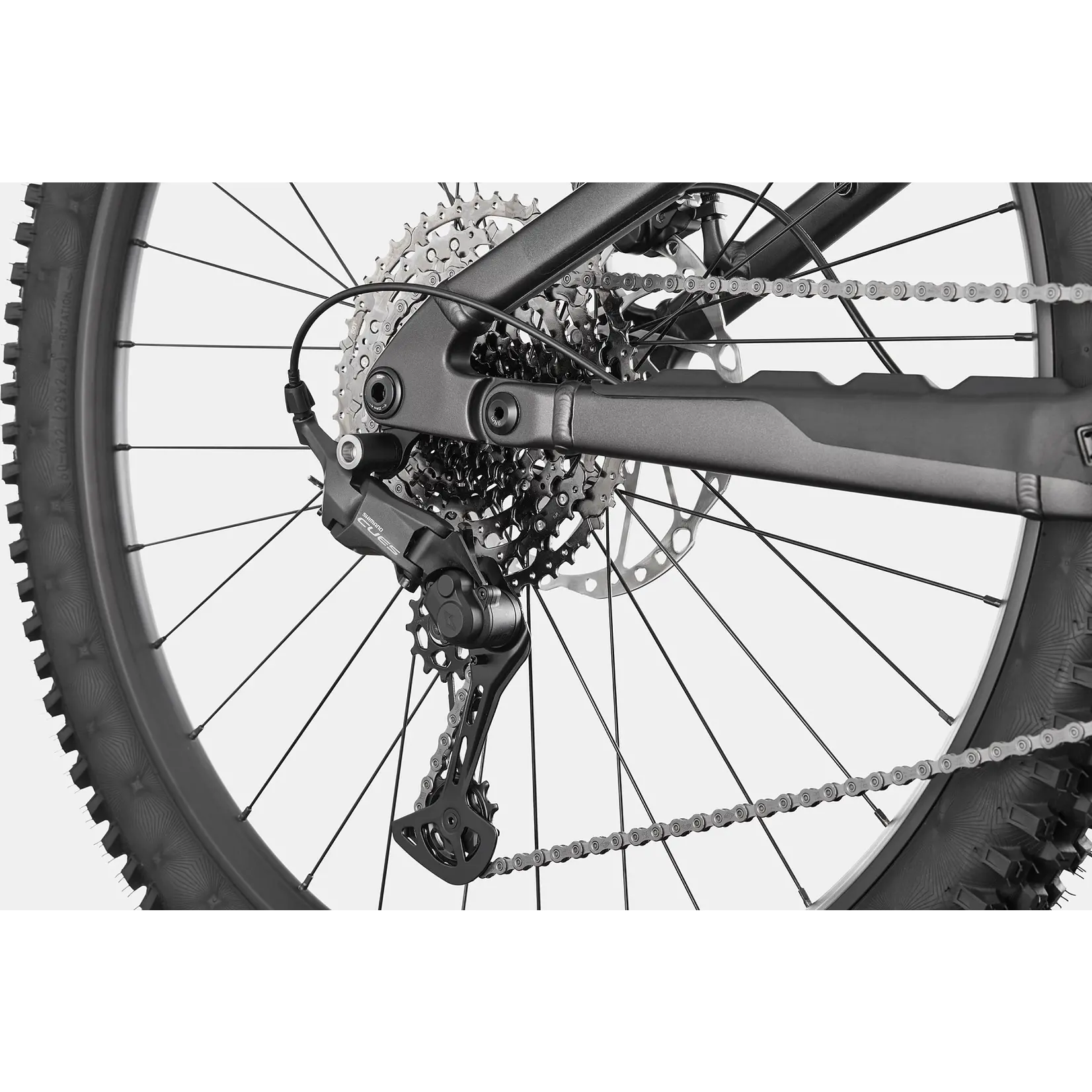

Rear Derailleur
Shimano XT
Shifters
Shimano Deore M6100, 12-speed
Chain
Shimano Deore 6100, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano Deore M6100, 10-51, 12-speed
BRAKES
Brakes
Shimano MT420 4-piston hydraulic disc, 203/203mm rotors
Brake Levers
Shimano MT401 hydraulic disc
WHEELS
Rims
WTB ST i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Hubs
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Front Tire
Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire
Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
COMPONENTS
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL)
EXTRA
Extra 1
Pre-installed light cable
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
