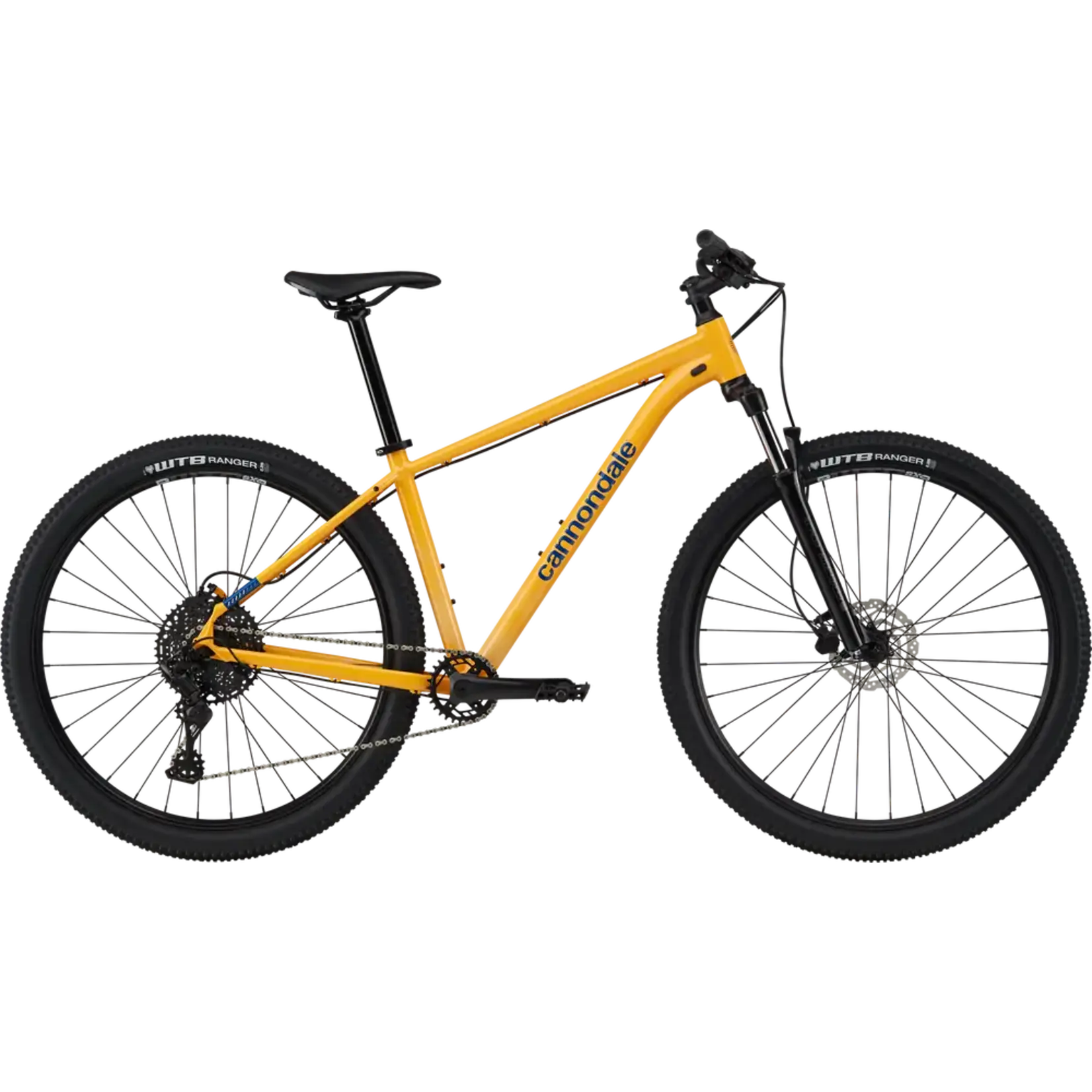

Cannondale Trail 5

Level Up.

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Where it thrives

Low-impact trails, gravel roads, leisurely ride

What it's built for

Handling, durability

Highlights

Light and durable SmartForm C3 Alloy frame
SR Suntour XCM suspension fork, 100mm travel
microSHIFT Advent X 10-speed shifting / Shimano hydraulic disc brakes

Specs

FRAMESET

Frame

SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount

Fork

SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29")

Headset

Semi-Integrated, 1-1/8"

DRIVETRAIN

Rear Derailleur

microSHIFT Advent X

Shifters

microSHIFT Advent X, 10-Speed

Chain

KMC X10, 10-speed

Crank

Prowheel, Charm 30T

Rear Cogs

microSHIFT, 11-48, 10-speed

Bottom Bracket

Sealed cartridge bearing, square taper

BRAKES

Brakes

Tektro M275 hydraulic disc, 160/160mm rotors

Brake Levers

Tektro hydraulic disc

WHEELS

Front Hub

Shimano HBTX 505

Rear Hub

Shimano FH-TX505

Brake Type

Disc

Rims

WTB SX19, 32h

Spokes

Stainless Steel, 14g

Tire Size

2.25

Wheel Size

Tires

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Front Tire

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Rear Tire

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

COMPONENTS

Handlebar

Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm

Stem

6061 Alloy, 31.8, 7°

Grips

Cannondale Dual-Density

Saddle

Cannondale Stage 3

Seatpost

Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL)

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
