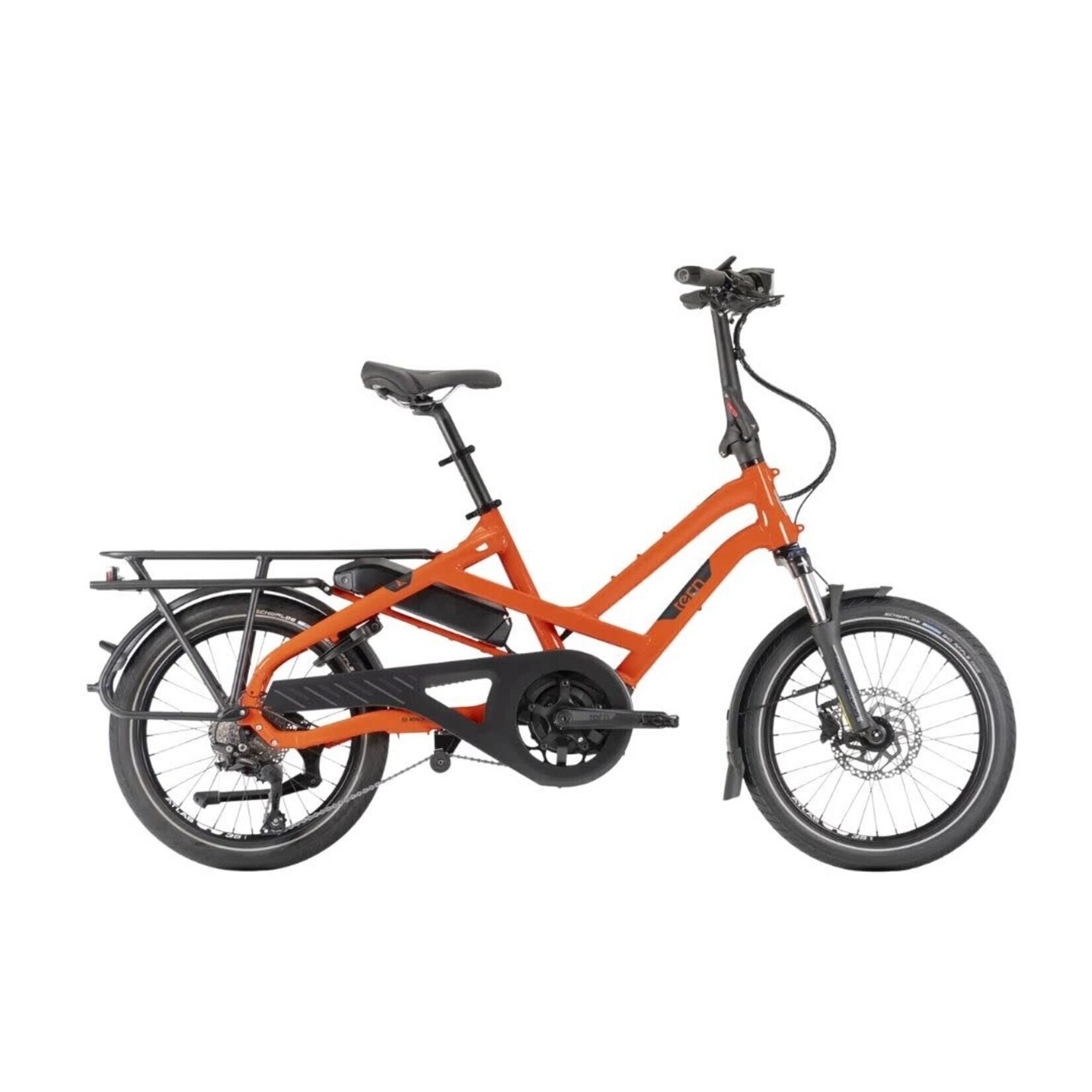

Tern HSD P10 Gen 2 Performance 545W Orange

Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.

What makes it a P10?

Bosch® Performance Line motor with Bosch BES3 Smart System
Detachable Intuvia 100 display
545 Wh battery providing range up to 121km
1x10-speed Shimano Deore groupset
Large rear rack capacity of 80 kg
Custom Suntour suspension fork
Shimano hydraulic disc brakes
Abus® keyed-alike frame lock
Fits riders from 150 to 195 cm (4’11” – 6’5”)

For more info, please check out the Why HSD on the Tern website.

Specs

GENERAL INFO

SPEEDS: 1 x 10

WEIGHT: 27.6 kg (60.8 lb)

GEAR INCHES: 30 - 97" (2.36 - 7.72 m)

FOLDING SIZE: 165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)

FOLDING TIME: 5 seconds

FRAME SIZES: One size

DISTANCE: SEATPOST TO HANDLEBAR: 54.5 - 62.5 cm (21.5 - 24.6 in)

DISTANCE: SADDLE TO PEDAL: 70 - 102.5 cm (27.6 - 40.4 in)

SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)

MAX GROSS VEHICLE WEIGHT: 180 kg (396.8 lb)

MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME

FRAME:

Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg

FORK:

Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

COCKPIT

HANDLEPOST:

Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

STEM:

Tern Andros, adjustable, forged construction, patented technology

HEADSET:

Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated

HANDLEBAR:

Tern Sweep, 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE:

Ergon

SADDLE:

Tern Upright by Velo

SEATPOST:

Tern Telescope, 34.9/30.9 mm, 2014-AL

SEATPOST CLAMP:

Tern Collar

BRAKES

FRONT BRAKE:

Tektro, hydraulic disc, 180 mm rotor

REAR BRAKE:

Tektro, hydraulic disc, 160 mm rotor

BRAKE LEVERS:

Tektro, hydraulic disc

BRAKE CABLE & HOUSING:

Tektro, hydraulic disc

WHEELS

FRONT WHEEL:

Tern Atlas H, cargo wheel

REAR WHEEL:

Tern Atlas H, cargo wheel

FRONT HUB:

Novatec, Thru-axle, sealed bearings

REAR HUB:

Novatec, sealed cartridge bearing, disc

SPOKES & NIPPLES:

Stainless steel

RIMS:

Tern Atlas H, wide 35 mm

TIRES:

Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S):

Shimano Deore, 1 x 10 spd, trigger

REAR DERAILLEUR:

Shimano Deore Shadow+

CRANKSET:

Tern HSD custom

CASSETTE/FREEWHEEL:

Shimano 11-36T, 10 spd

BOTTOM BRACKET:

Motor integrated

CHAIN:

KMC 10 spd, for eBike, EPT corrosion resistant coating

PEDALS:

Urban with non-slip surface

SHIFTER CABLE & HOUSING:

Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR:

Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY:

Bosch PowerPack 545

DISPLAY:

Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock

LOCK & ALARM:

Optional

RANGE:

545 Wh: 51-121 km (32-76 mi)

CHARGER:

220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES

BELL:

Pitch Plus, brass

CHAINGUARD:

Tern Custom, full chain cover

KICKSTAND:

Ursus, rear mount

LUGGAGE SOCKET:

Combo Mount

FRONT LIGHT:

Tern Valo Direct, 190 lumens

REAR LIGHT:

Herrmans H-Trace, for eBike

FENDERS:

SKS, stainless hardware

RACK(S):

Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

FRAME LOCK:

ABUS, keyed-alike with Bosch battery

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
